Quick Details

  • Condition: New
  • Application: Plastic sheet
  • Plastic Processed: PP, PS
  • Screw Design: Single-screw
  • Automatic Grade: Automatic
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AUTO
  • Model Number: WSJP10590-1000
  • Voltage: 380V
  • Power(W): ≤280kw
  • Dimension(L*W*H): 10.7m*1.8m*2.8m
  • Weight: 14T
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Suitable Material: PP, PS
  • Suitable Power: 380V,50Hz

Packaging & Delivery

Packaging Details Package: Wooden case or Pallet
Delivery: 90-120 days after receiving deposit or L/C
Delivery Time Shipped in 90 days after payment
Product Description
I. Main Technical Data
Item Parameter Remarks
Product Format <3 layer
Suitable Materials PP, PS
Sheet Thickness 0.2-1.8mm
Sheet Width ≤850mm
Tolerance of Sheet Thickness ±0.015mm
Max. Output ≤300kg/h
Production Line Speed ≤25m/min
Total Power ≤280kw Actual Power≤60%
1. Suitable voltage: 380V±5%,50Hz;
2. Water pressure: 0.2-0.4MPa;
3. Air pressure:0.5-0.8Mpa.

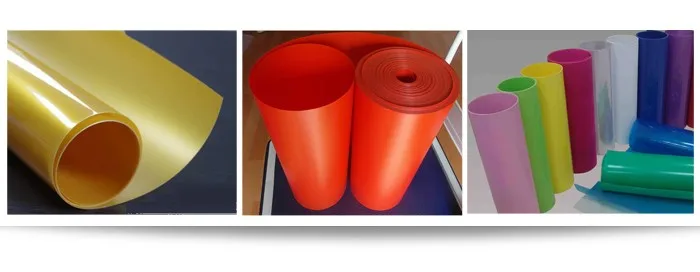

Finished product:

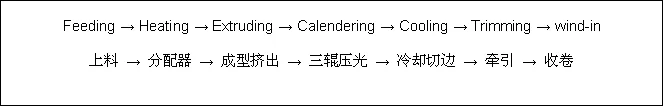

II. Process

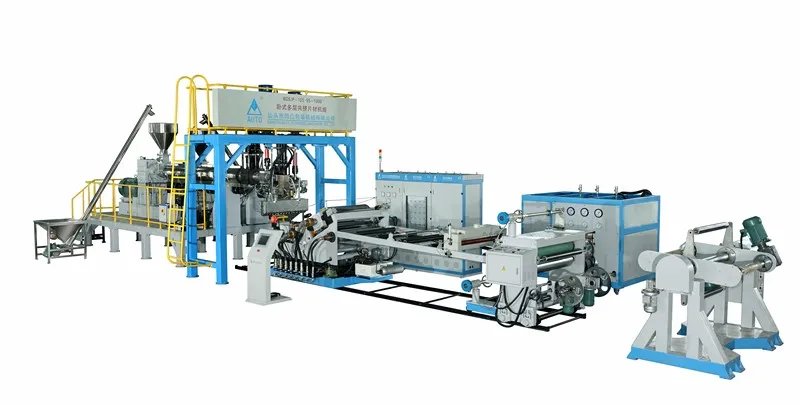

III. Main Line components

1. 2 sets Automatic Feeding machine: 1 set Capacity≥400kg/h, 1 sets Capacity≥200kg/h.

2. 2 sets Jinhailuo Extruder: Φ120mm extruder *1, Φ90mm extruder*1sets

a. - Screw: Φ105mm(34:1)

- Siemens motor driven 130kw-6P

- Adopts frequency converter to regulate the speed

- Reducer and motor direct driven

- 7zones heater and 7zones cooler fan

b. - Screw: Φ90mm(34:1)

- Siemens motor driven 30kw-6P

- Adopts frequency converter to regulate the speed

- Reducer and motor direct driven

- 5zones heater and 5zones cooler fan

3. Jingyi Duplex Hydraulic screen changer

- 1 sets screen diam130mm,1sets sets screen diam60mm

- Power in Hydraulic station 1.5kw

4. Jingyi Metering Pump

- one set 200cc/r and one sets30cc/r

- adopt the Pressure sensor help to automatic control

- 11kw Gear motor and the other one 5.5kw Gear motor driven

5. Jingyi ABA, AB Extrusion Ttype Die

- Effective width 1000mm, for 0-2.0mm sheet production

- 5 zones heating area

6. Diagonal Three-roller Calender

- 2pcs Mirror RollerΦ490*1100mm; 1pc Mirror RollerΦ330*1100mm

- 3 sets 3kw parallel axis gear reducer Frequency conversion closed-loop controlled

- 3 sets thermostat device control roller's temperature

7. Cooling trimming machine

- cooling rollerΦ80*1000mm

- Manual trimming device

- leftover material wind device

8. Tractor

- 3kw Parallel axis gear reducer Frequency conversion driven

- roller Φ215*1000 and Φ205*1000

9. Duplex Center Turnover winding machine

- Max. Winding diameter 700mm; winding width 900mm

- 2 Torque motors driven

- 2pcs air shaft 3"*1000

- With calculator alarm

10. Electrical control cabinet

- PLC control system, touch-screen, Temperature Module, all used Delta series

- Delta Variable-frequency drive control the extruder, melt gear pump, Three-roller Calender, tractor.

More products

Company Information


 About machinery, we are just professional



     We are leading packaging machine manufacturer in China, we are famous disposable products manufacturer in China (http://lhpack.en.alibaba.com/) as authorized Coca Cola supplier.


     We started manufacturing disposable product in 1992, more than 20years effort now we have both disposable product factory and machinery factory.   We have our own R&D department with our experienced engineer team which guarantee the best quality of product, professional & efficient machinery maintenance and after sale service.


     With 20 years experience in producing thermoforming quality products, we can give our customer more useful suggestion and technical support from the tooling making and final production.


     Our top selling item are extrusion machine, high speed full automatic thermoforming machine, including mould design and produc tion, our professional sales team is very familiar with the disposable products material & production process , hence possibility for them to provide customer the most professional purchase solution of machine.


     Our mission is to provide good quality machine to our customer and to be the leading packaging machinery manufacturer in the world.


Our Services


Packaging & Shipping




If you have any question or require,just contact me



1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.


3. Q: How long is the warranty period?
A: All of our machiner have one year warranty.

4. Q: What's the main market of your company?
A: We have customers all over the world.

5. Q: How much production capacity of your company one year?
A: This depends on your needs.

6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.

7. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Shantou City, Guangdong Province, China,
about 50 minutes from Guangzhou by air. We offer transportation service.
