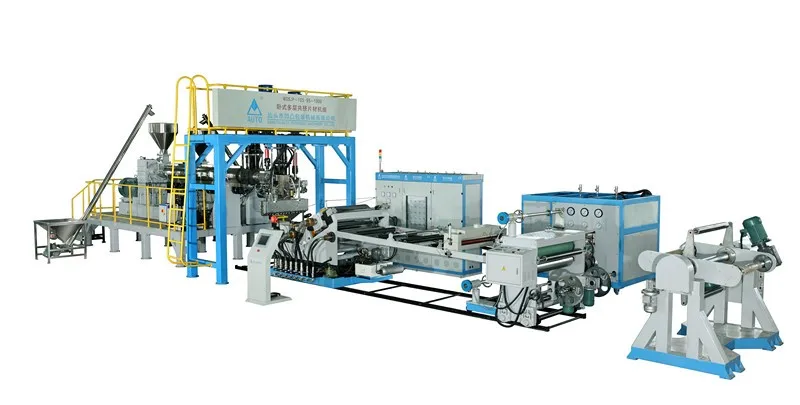

Co-extrusion line WJP1059035-1000 pp sheet extrusion forming machine

FOB Reference Price:Get Latest Price
$194,000.00 - $200,000.00 / Set | 1 Set/Sets Automatic Plastic Sheet Extruder Machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
AUTO
Model Number:
WJP1059035-1000
Voltage:
380V
Application:
Film
Weight:
15T
Certification:
CE ISO9001
Screw Design:
Single-screw
Plastic Processed:
Polystyrene
Dimension(L*W*H):
12m*2.4m*3.5m
Suitable Material:
PP,PS
Suitable Power:
380V,50Hz
Name:
Sheet Extruder Machine
Use:
Plastic Sheet Extruder Machine
Type:
Plastic PP,PS Sheet Production
Features:
Biodegradable Plastic,Automatic,Efficient,Low cost
Usage:
Plastic Sheet Extruder Machine
Product name:
Sheet Co-Extrusion Production Line
Warranty:
1 Year
After-sale service:
One year shelf life,Profession installation
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
≤280kw
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
15 Set/Sets per Year
Packaging & Delivery
Packaging Details
Package: Wooden case or Pallet
Delivery: 90-120 days after receiving deposit or L/C
Port
Shantou port
Lead Time :
Shipped in 90 days after payment
Product Description
I. Main Technical Data High-Speed Small Automatic Plastic Film Sheet Extrusion Extruder Machine
Item Parameter Remarks
Product Format ≤5 layer
Suitable Materials PP, PS
Sheet Thickness 0.2-1.8mm
Sheet Width ≤850mm
Tolerance of Sheet Thickness ±0.015mm
Max. Output ≤300kg/h
Production Line Speed ≤25m/min
Total Power ≤280kw Actual Power≤60%
Remarks:
1. Suitable voltage: 380V±5%,50Hz;
2. Water pressure: 0.2-0.4MPa;
3. Air pressure:0.5-0.8Mpa.

High-Speed Small Automatic Plastic Film Sheet Extrusion Extruder Machine

About machinery, we are just professional



II. Process

High-Speed Small Automatic Plastic Film Sheet Extrusion Extruder Machine

III. Main Line components

1. 3 sets Automatic Feeding machine: 1 set Capacity≥400kg/h, 2 sets Capacity≥200kg/h.

2. 3 sets Jinhailuo Extruder: Φ120mm extruder *1, Φ90mm extruder*1sets,Φ35mm extruder*1sets

 a. - Screw: Φ105mm(34:1)

- Siemens motor driven 130kw-6P

- Adopts frequency converter to regulate the speed

- Reducer and motor direct driven

- 7zones heater and 7zones cooler fan

 b. - Screw: Φ90mm(34:1)

- Siemens motor driven 30kw-6P

- Adopts frequency converter to regulate the speed

- Reducer and motor direct driven

- 5zones heater and 5zones cooler fan

c. - Screw: Φ35mm(34:1)

 - Siemens motor driven 30kw-6P

 - Adopts frequency converter to regulate the speed

 - Reducer and motor direct driven

 - 5zones heater and 5zones cooler fan

3. Jingyi Duplex Hydraulic screen changer

- 1 sets screen diam130mm,2sets sets screen diam60mm

- Power in Hydraulic station 1.5kw

4. Jingyi Metering Pump

- one set 200cc/r and two sets30cc/r

- adopt the Pressure sensor help to automatic control

 - 11kw Gear motor and the other two 5.5kw Gear motor driven

5. Jingyi ABC, ABCA,ABCBA Extrusion Ttype Die

- Effective width 1000mm, for 0-2.0mm sheet production

- 5 zones heating area

6. Diagonal Three-roller Calender

- 2pcs Mirror RollerΦ490*1100mm; 1pc Mirror RollerΦ330*1100mm

- 3 sets 3kw parallel axis gear reducer Frequency conversion closed-loop controlled

- 3 sets thermostat device control roller's temperature

7. Cooling trimming machine

- cooling rollerΦ80*1000mm

- Manual trimming device

- leftover material wind device

8. Tractor

- 3kw Parallel axis gear reducer Frequency conversion driven

- roller Φ215*1000 and Φ205*1000

9. Duplex Center Turnover winding machine

- Max. Winding diameter 700mm; winding width 900mm

- 2 Torque motors driven

- 2pcs air shaft 3"*1000

- With calculator alarm

10. Electrical control cabinet

- PLC control system, touch-screen, Temperature Module, all used Delta series

- Delta Variable-frequency drive control the extruder, melt gear pump, Three-roller Calender, tractor.
